Mouldings 101 Guide | Bayer Built Woodworks

Mouldings are the finishing detail in your home. In simplest terms, mouldings refer to base, casing and crown. They complete the overall look of doors, walls and windows. By following the steps below, we can help make selecting base, casing and crown an easy process.

Step 1: Location

Step 2: Profile & Size

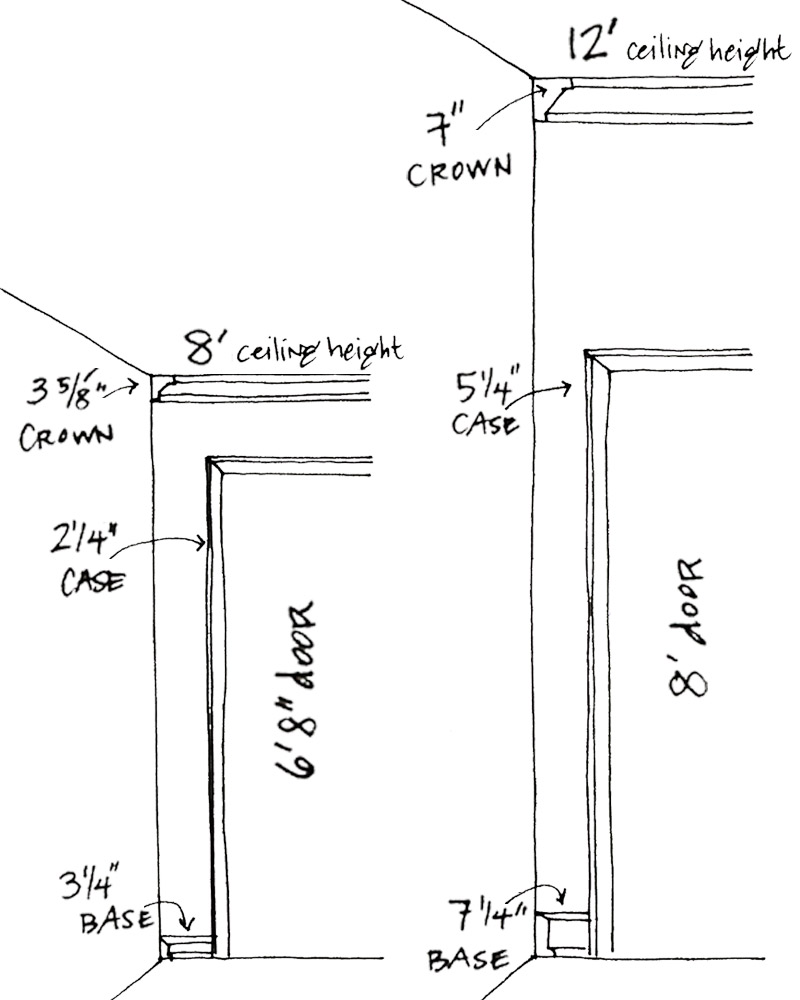

The profile of a moulding refers to the amount of detail, which can range from very simple to ornate with lots of detail. In addition to the profile, it's important to select the moulding in a size that relates well to the overall dimensions of your home. For example, high ceilings allow for taller moulding, as shown in the drawing below.

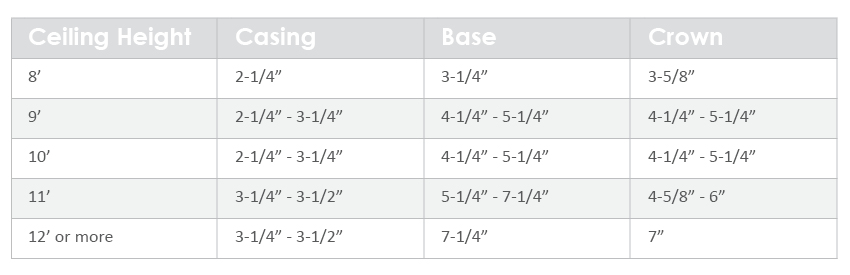

Ceiling Height	Casing	Base	Crown
8'	2-1/4"	3-1/4"	3-5/8"
9'	2-1/4" - 3-1/4"	4-1/4" - 5-1/4"	4-1/4" - 5-1/4"
10'	2-1/4" - 3-1/4"	4-1/4" - 5-1/4"	4-1/4" - 5-1/4"
11'	3-1/4" - 3-1/2"	5-1/4" - 7-1/4"	4-5/8" - 6"
12'	3-1/4" - 3-1/2"	7-1/4"	7"

Moulding Calculator
Room Dimensions
Width (ft)
Length (ft)

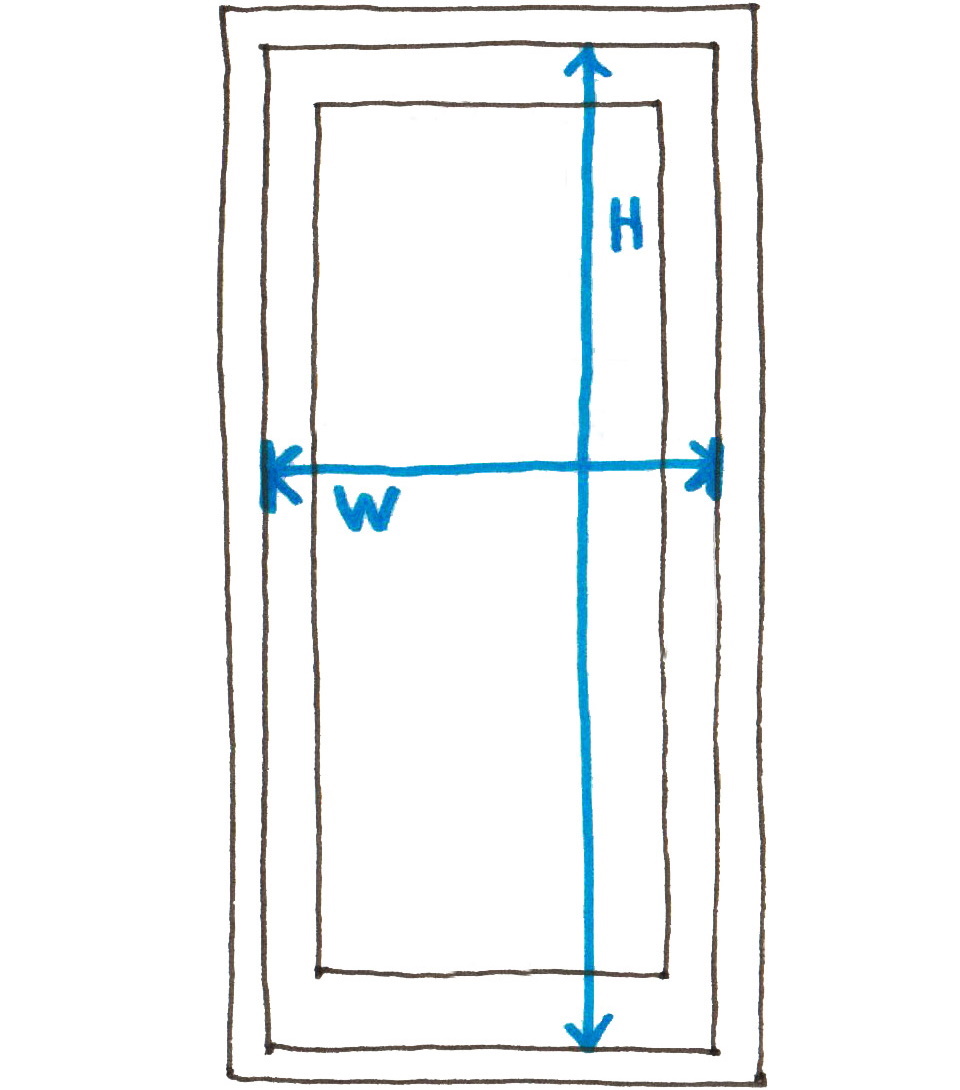

Windows
Width (in)
Height (in)

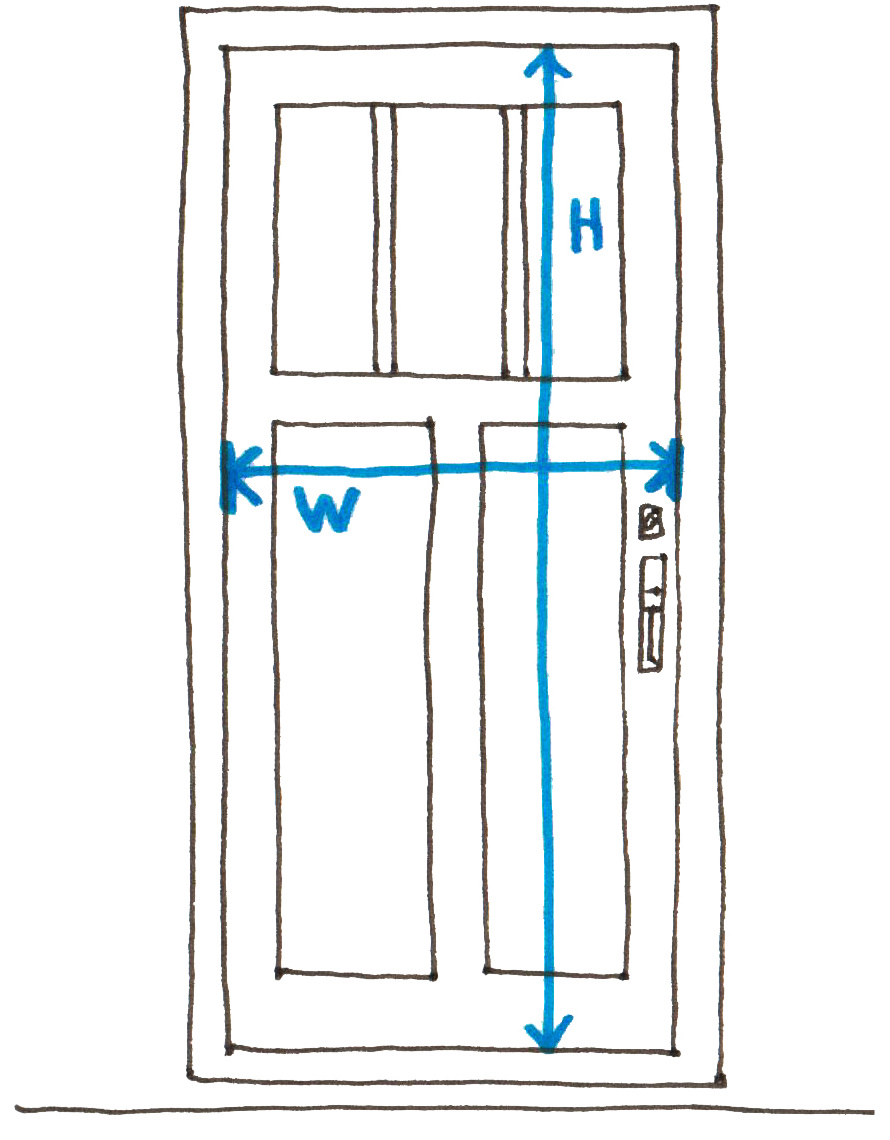

Doors
Width (in)
Height (in)
All measurements acccount for 15% waste
The estimate below is to be used only as a rough estimate. Bayer Built assumes no responsibility for overage or lack of material. Installers know best how much product will be needed to complete your project.
You need
0
total feet of horizontal moulding.
You need
0
total feet of casing moulding.
