Our heavy duty 16-gauge extruded aluminum frames are virtually indestructible and a great alternative to thin coil-stock aluminum wrapping. Constructed entirely of aluminum and composite materials, these frames are impervious to water-wicking, warping, and bug infestation.
The ease of installation makes this option all the more attractive. The additional material cost of this 16-gauge extruded product is more than offset by the installation time savings realized over that of coil-stock. These frames are assembled at the factory to assure proper fit, then disassembled, and boxed for shipment. Our Aluminum Garage Door Frames are manufactured by FrontLine Building Products, and carry a limited lifetime warranty.
Fits existing and new construction. Verticals are miter cut with 3" extra length for concrete angle to be cut in the field. Header is miter cut on one end only, leaving the other end long enough to be cut in the field. Actual clad size is 4-1/2" & 6-1/2" respectively. Clad will not cover complete trimmer.
*For 16' & 18' there will be a splice in the extender.

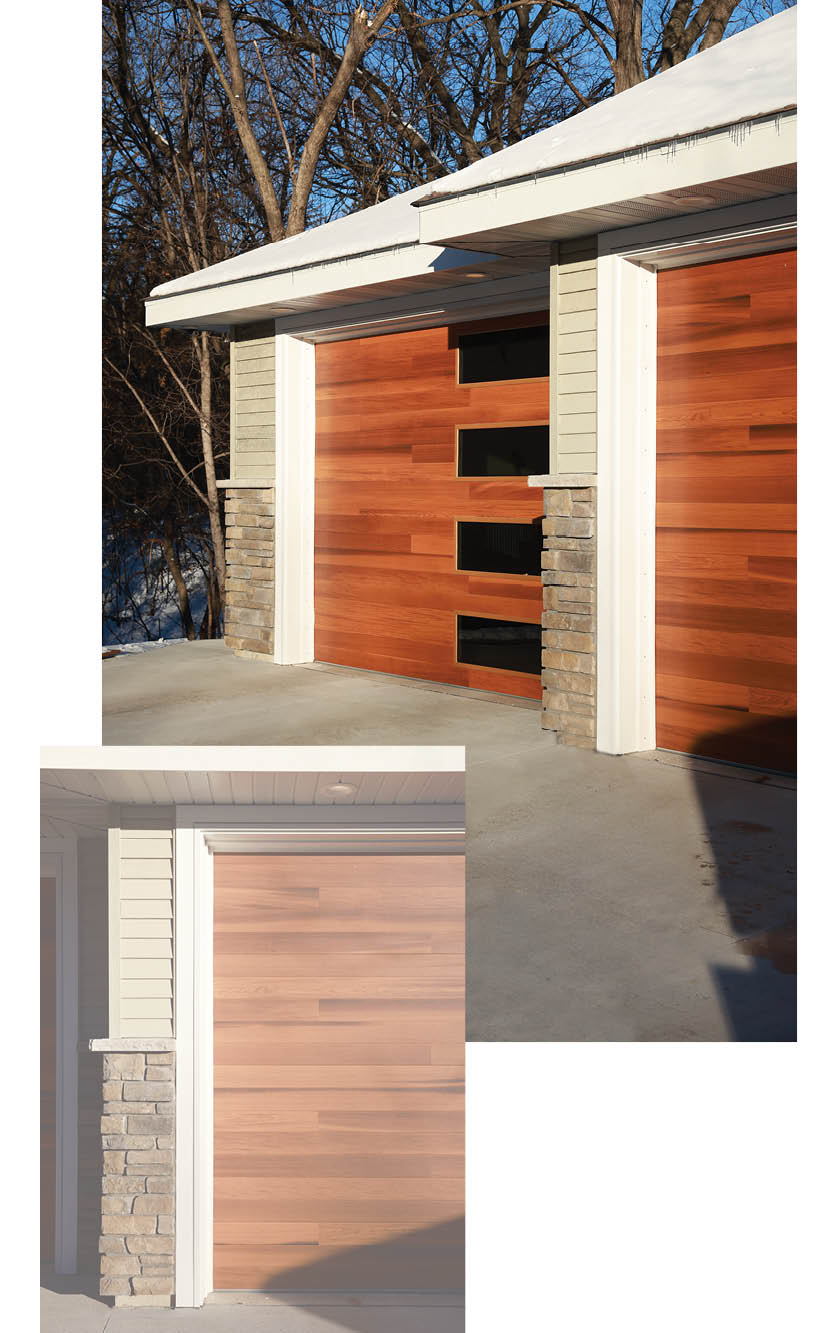

Note: images are intended for reference purposes only. Not accurate for color matching
